STS Series

STS transparent LED display adopts flexible and bendable frameless design technology with high transparency and high brightness. It can be customized according to the scene and size size as per user’s requirement. Currently, this display is also widely used in shopping centers, exhibitions and commercial displays.

Pixel Pitch (mm):1.9/2.8/3.91/5.2/7.8/10.4/15.625
Module size(mm): 500*125
Cabinet size(mm): 500*500/1000*500

Highly Transparent

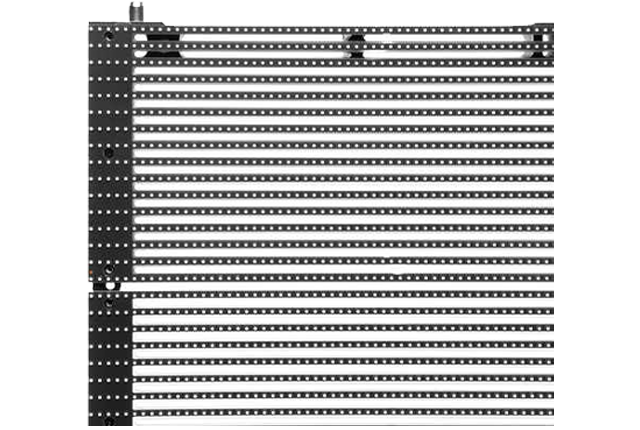

The STS transparent LED screens have high transparency. The width of each LED strip ranges from 1.56 to 4mm with 65%-95% transparency. This allows the screen to display content while integrating perfectly with the surrounding environment without affecting indoor lighting and vision, adding a sense of technology to the space without losing its natural beauty.

Lightweight Design

Compared with traditional displays, LED Transparent Displays are lighter in weight, about one-third of the box structure of non-transparent LED displays. This not only facilitates transportation and installation, but also reduces the load-bearing requirements of the installation structure, reducing installation costs.

Provide diversified customizations

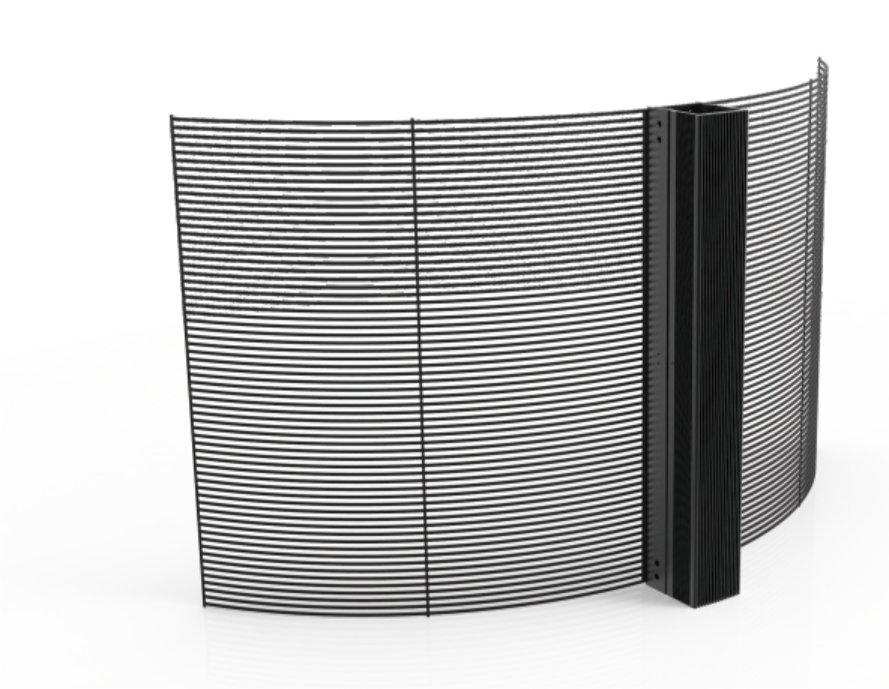

The specific requirements of your project can be met by customizing the STS series. Flexible frames allow for curved mounting. Depending on the installation location, a more suitable mounting angle can be customized. This meets the varying needs of our customers and ensures a perfect fit for any space or application, providing a superior visual experience.

Flexible Installation

The LED transparent screen with a hollow-strip design is more flexible, supporting modular connection. It can be customized according to different installation requirements, such as curved surface installation, etc., and can adapt to a variety of complex architectural structures and spatial layouts.

Excellent Visual Effect

The LED Transparent Display has excellent display effect. The high resolution and high brightness ensure clear display of images and videos with vivid and rich colors and high contrast, which can bring a stunning visual experience to the audience both in daytime and nighttime.

Applications

The STS Series is perfectly applicable in diverse scenarios like shopping malls, exhibitions, and stages, offering users a completely new visual experience. It is capable of creating immersive scenes, providing abundant information, and guaranteeing clear information dissemination.

Product Model	STS 1	STS 2	STS 3	STS 5	STS 8	STS 10	STS 15
Pixel Pitch (mm)	1.9*3.9	2.8*5.6	3.9*7.8	5.2*10.4	7.8*7.8	10.4*10.4	15.625*15.625
Pixel Density (dots/m²)	129,024	61,952	32,768	18,432	16,384	9,216	4,096
Module Resolution (dots)	252*16	176*22	128*16	96*12	64*16	48*12	32*8
Cabinet Resolution (dots)	504*128	352*88	256*64	192*48	128*64	96*48	64*32
Transparency	42%	45%	65%	75%	65%	75%	85%
Brightness (nits)	800~4,500	800~5,500	800~5,500	800~5,500	800~5,500	800~6,500	800~6,500
Power Requirements	AC 220V±10%; 50Hz	AC 220V±10%; 50Hz	AC 220V±10%; 50Hz	AC 220V±10%; 50Hz	AC 220V±10%; 50Hz	AC 220V±10%; 50Hz	AC 220V±10%; 50Hz
Power Consumption	Max: 800W/m²; Avg: 260W/m²	Max: 800W/m²; Avg: 260W/m²	Max: 800W/m²; Avg: 260W/m²	Max: 800W/m²; Avg: 260W/m²	Max: 800W/m²; Avg: 260W/m²	Max: 800W/m²; Avg: 260W/m²	Max: 800W/m²; Avg: 260W/m²
Refresh Rate	1920/3840Hz	1920/3840Hz	1920/3840Hz	1920/3840Hz	1920/3840Hz	1920/3840Hz	1920/3840Hz
Operating Temperature	-10°C~45°C	-10°C~45°C	-10°C~45°C	-10°C~45°C	-10°C~45°C	-10°C~45°C	-10°C~45°C
Weight	7kg/m²	7kg/m²	7kg/m²	7kg/m²	7kg/m²	7kg/m²	7kg/m²
Cabinet Size	1000*500mm	1000*500mm	1000*500mm	1000*500mm	1000*500mm	1000*500mm	1000*500mm
