Shelf LED Screen
- Pixel pitch(mm): 1.2/1.5/1.875
- Module size(mm): 300*60
- Innovative & Fashionable & Intelligent
Horizontal & Portrait Switching
Experience unparalleled flexibility with eTegrity Digital Signs Shelf LED Screen, designed for seamless horizontal and portrait switching. Whether you prefer a horizontal layout or need a vertical display, the intelligent conversion technology adapts effortlessly to meet diverse usage scenarios.
Vivid and Clear
Automatic Loop Playback
Seamless Connectivity
Enjoy the convenience of eTegrity Digital Signs Shelf LED Screen with WiFi connection and automatic reading capabilities. Play pictures, videos, and music on a rotating loop, supporting multiple formats including MP3, MP4, Flash, JPG, AVI, PDF, PPT, and WORD.
Advanced Features
eTegrity Digital Signs Shelf LED Screen boasts an HD display for crystal-clear visuals, remote management for convenient control from anywhere, an ultra-wide perspective for perfect viewing from any angle, a timing switch for scheduled on/off times, and a high refresh rate for smooth, flicker-free images. Experience these advanced features and elevate your display experience.

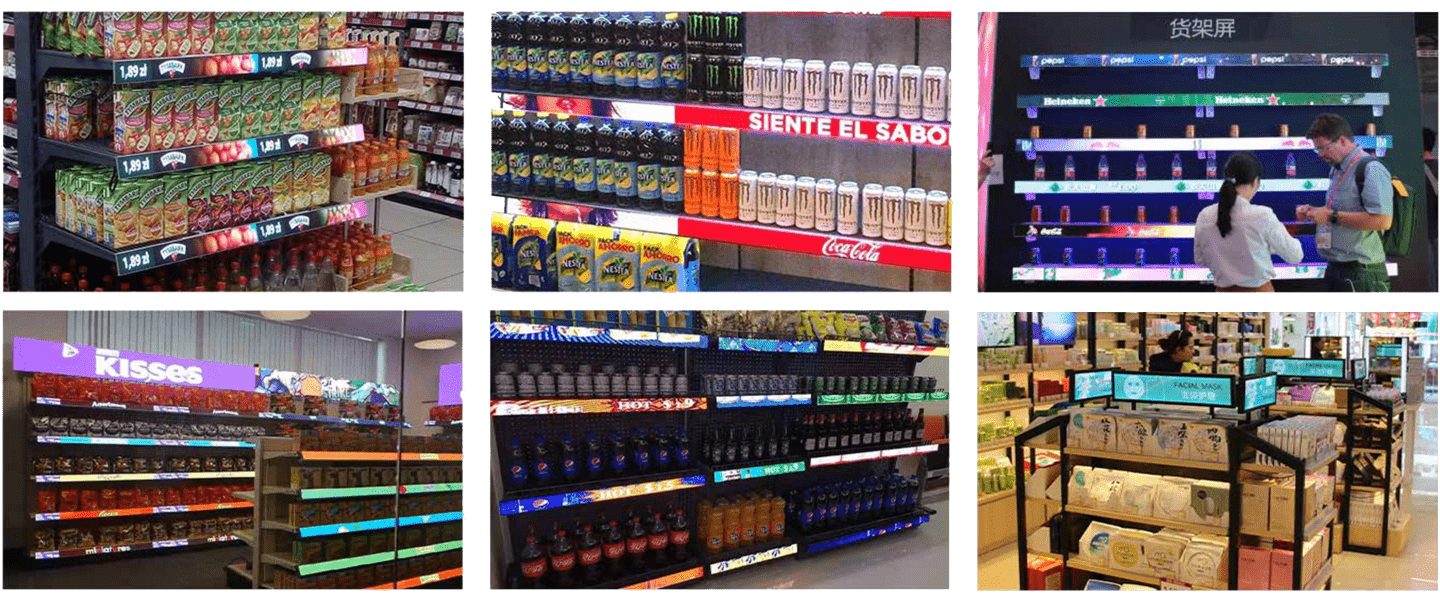

Applications
| Pixel Pitch (mm) | P1.2mm | P1.5mm | P1.875mm | |||
|---|---|---|---|---|---|---|
| Viewing Angle (H/V) | 160°/120° | 160°/120° | 160°/120° | |||
| Brightness (cd/sqm) | 800 | 800 | 800 | |||
| Refresh Rate (Hz) | >3840 | >3840 | >3840 | |||
| Optimized Viewing Distance (m) | 1~10 | 1~10 | 1~10 | |||
| Input Voltage | AC110V Or AC220V+10%50/60HZ | |||||
| Input interface | Ethernet/USB/Wi-Fi | Ethernet/USB/Wi-Fi | Ethernet/USB/Wi-Fi | |||
| Module Size in Pixel (WxH) | 250x50 | 200x40 | 160x32 | |||
| Module Size in mm (WxH) | 300x60mm | 300x60mm | 300x60mm | |||
| IP Rating | IP40 | IP40 | IP40 | |||
| Maintenance | Rear | Rear | Rear | |||
| Operating Temperature/Humidity (℃/RH) | -10*C-40*C/10-90RH% | -10*C-40*C/10-90RH% | -10*C-40*C/10-90RH% | |||
| Certification | CCC/CE/ETL/FCC | CCC/CE/ETL/FCC | CCC/CE/ETL/FCC | |||
| Specifications | XS600-1.875 | XS900-1.875 | XS1200-1.875 | XH600-1.875 | XH900-1.875 | XH1200-1.875 |
| Pixel Pich(mm) | 1.875 | 1.875 | 1.875 | 1.875 | 1.875 | 1.875 |
| Display Size(mm) | 600*60 | 900*60 | 1200*60 | 600*240 | 900*240 | 1200*240 |
| Cabinet Size(mm) | 603*68.4*25 | 903*68.4*25 | 1203*68.4*25 | 603*248.4*25 | 903*248.4*25 | 1203*248.4*25 |
| LED Lamp | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| Module Size(mm) | 300*65 | 300*65 | 300*65 | 300*245 | 300*245 | 300*245 |
| Cabinet Weight(kg) | 0.8 | 1.2 | 1.5 | 3.2 | 4.8 | 6 |
| Specifications | XS600-1.5 | XS900-1.5 | XS1200-1.5 | XH600-1.5 | XH900-1.5 | XH1200-1.5 |
| Pixel Pich(mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Display Size(mm) | 600*60 | 900*60 | 1200*60 | 600*240 | 900*240 | 1200*240 |
| Cabinet Size(mm) | 603*68.4*25 | 903*68.4*25 | 1203*68.4*25 | 603*248.4*25 | 903*248.4*25 | 1203*248.4*25 |
| LED Lamp | SMD1212 | SMD1212 | SMD1212 | SMD1212 | SMD1212 | SMD1212 |
| Module Size(mm) | 300*65 | 300*65 | 300*65 | 300*245 | 300*245 | 300*245 |
| Cabinet Weight(kg) | 0.8 | 1.2 | 1.5 | 3.2 | 4.8 | 6 |
| Specifications | XS600-1.2 | XS900-1.2 | XS1200-1.2 | XH600-1.2 | XH900-1.2 | XH1200-1.2 |
| Pixel Pich(mm) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Display Size(mm) | 600*60 | 900*60 | 1200*60 | 600*240 | 900*240 | 1200*240 |
| Cabinet Size(mm) | 603*68.4*25 | 903*68.4*25 | 1203*68.4*25 | 603*248.4*25 | 903*248.4*25 | 1203*248.4*25 |
| LED Lamp | SMD1010 | SMD1010 | SMD1010 | SMD1010 | SMD1010 | SMD1010 |
| Module Size(mm) | 300*65 | 300*65 | 300*65 | 300*245 | 300*245 | 300*245 |
| Cabinet Weight(kg) | 0.8 | 1.2 | 1.5 | 3.2 | 4.8 | 6 |
