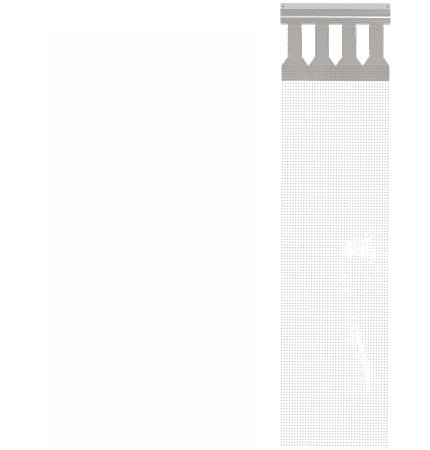

STJ Series

Allowing images and text to be displayed in Windows or on glass, a PCB technology for STJ series LED displays, not only increases brightness by more than 90%, you can also easily cut the size of the film.
  • Transparency: >90%
  • Pixel pitch(mm): 4/5/6/6.25/8/10/15/20
  • Module size(mm): 1000*400/1000*240
request a solution

Light And Thin

This LED film screen is designed to be incredibly light and thin, weighing just 5kg/㎡ and measuring as thin as 2.5mm. This innovative design ensures no added pressure on the glass, making it an ideal choice for modern, sleek installations that prioritize both aesthetics and functionality.

Soft PCB Technology

eTegrity Digital Signs transparent LED screen solution creates a vivid see-through experience using cutting-edge invisible PCB technology. This innovation increases transparency rates up to 95% and supports custom projects with flexible PCB technology. Tailor the size of the film to your needs, and enjoy unparalleled clarity and adaptability for any application.

Super Scalability and Flexibility

These LED film screens offer unparalleled scalability and flexibility. They can be freely cut and seamlessly stitched, allowing screen sizes and shapes to be customized to fit a variety of mounting options. Experience the freedom to create dynamic, tailored displays for any space.

High Transparency

Achieve near-invisible integration with our LED film screens, offering 95% transparency. This ensures the glass remains visible even after application, preserving the original design without compromise. Enjoy the benefits of cutting-edge display technology while maintaining your space’s aesthetic integrity.

High Transmittance

The LED film screens utilize integrated MiniLED lamp beads and an invisible grid circuit to enhance permeability. With over 90% transmittance, they ensure excellent glass daylighting, preserving natural light and maintaining the aesthetic appeal of your space.

Flame Retardant and UV Resistant

The LED film screens are designed with Grade V1 flame retardant materials and offer exceptional UV resistance, ensuring no yellowing for over 8 years. Enjoy long-lasting, safe, and reliable performance in any environment.

Easy Installation

No steel structure needed—simply stick the thin screen and connect the power signal. eTegrity Digital Signs self-developed glue filling process ensures the screen adheres directly to the glass surface with strong colloid adsorption, increasing in adhesion over time. Enjoy a seamless and easy installation with Miestrong’s innovative LED film screens.

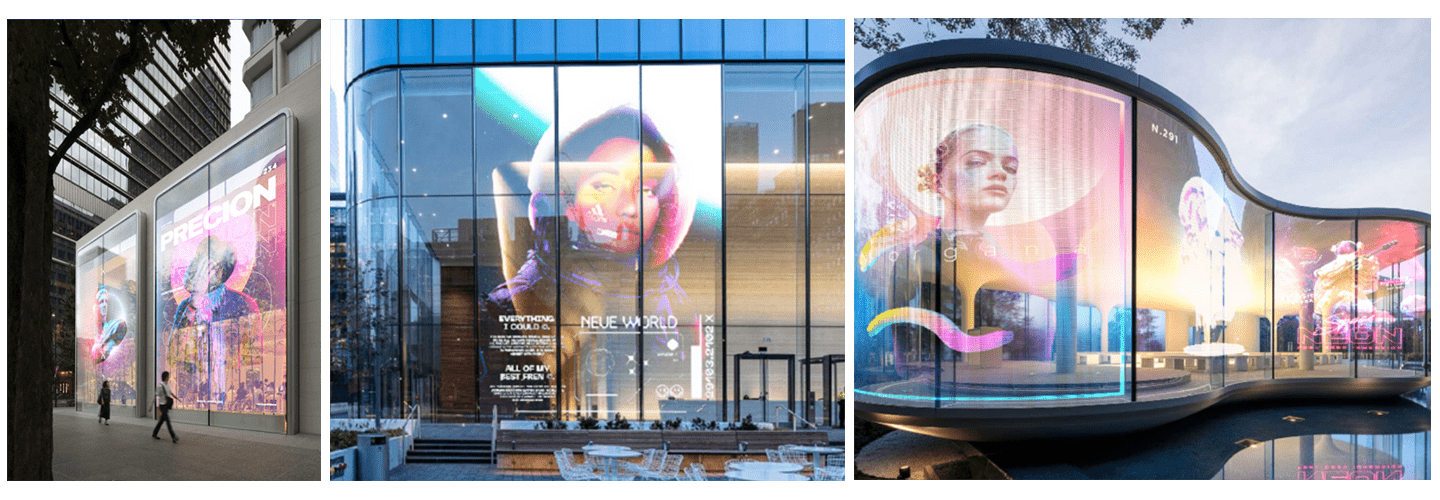

Applications

The LED film screens are widely used in a variety of settings, including retail storefronts, corporate offices, exhibition centers, and residential spaces. Enhance your environment with dynamic and transparent displays, ideal for creating engaging advertisements, innovative interior designs, and captivating public displays. Whether for commercial or personal use, the LED film screens offer endless possibilities for creative and functional applications.

Model P6.25 P8 P10 P15 P20
Module size (mm)1000×4001000×4001000×400990×3901000×400
LED light15151515151520222022
Pixel compositionR1G1B1R1G1B1R1G1B1R1G1B1R1G1B1
Pixel spacing (mm)6.25×6.258×810×1015×1520×20
Module pixel160×64=10240125×50=6250100×40=400066×26=171650×20=1000
Pixel/m²25600165001000043562500
Brightness2000/40002000/40002000/40002000/40002000/4000
Permeability90%92%94%94%95%
Angle of view (°)160160160160160
Input voltageAC110-240V50/60HzAC110-240V50/60HzAC110-240V50/60HzAC110-240V50/60HzAC110-240V50/60Hz
Peak power600W/m²600W/m²600W/m²600W/m²600W/m²
Average power200W/m²200W/m²200W/m²200W/m²200W/m²
Work environmentTemperature -20℃–55℃, Humidity 10–90%Temperature -20℃–55℃, Humidity 10–90%Temperature -20℃–55℃, Humidity 10–90%Temperature -20℃–55℃, Humidity 10–90%Temperature -20℃–55℃, Humidity 10–90%
Weight1.3kg1.3kg1.3kg1.3kg1.3kg
Thickness2.5mm2.5mm2.5mm2.5mm2.5mm
Drive modestatic statestatic statestatic statestatic statestatic state
Control systemNova/ColorlightNova/ColorlightNova/ColorlightNova/ColorlightNova/Colorlight
Typical value of life100000H100000H100000H100000H100000H
Grayscale level16bit16bit16bit16bit16bit
Refresh rate3840 Hz3840 Hz3840Hz3840 Hz3840 Hz
Parameter P4 P5 P6 P8 P10 P20
Module size (mm) 1000*240 1000*240 1000*240 1000*240 1000*240 1000*240
Module pixels 250*60 200*48 166*40 125*30 100*24 50*12
Pixel/m² 250*250 200*200 166*166 125*125 100*100 50*50
LED light source 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Brightness (CD) 1500CD 1500CD 2500CD 2500CD 3000CD 1200CD
Permeability 90% 90% 93% 93% 93% 95%
Refresh rate 3840Hz 3840Hz 3840Hz 3840Hz 3840Hz 3840Hz
Peak power consumption 720W/m² 720W/m² 720W/m² 720W/m² 720W/m² 720W/m²
Average power consumption 260W/m² 260W/m² 260W/m² 260W/m² 260W/m² 260W/m²
Working environment Humidity 10-75% Temperature-0-55 Humidity 10-75% Temperature-0-55 Humidity 10-75% Temperature-0-55 Humidity 10-75% Temperature-0-55 Humidity 10-75% Temperature-0-55 Humidity 10-75% Temperature-0-55
Service life 100000H 100000H 100000H 100000H 100000H 100000H
Drive mode stalic stalic stalic stalic stalic stalic
Grayscale 16bit 16bit 16bit 16bit 16bit 16bit
Control system Nova/Colorlight Nova/Colorlight Nova/Colorlight Nova/Colorlight Nova/Colorlight Nova/Colorlight
