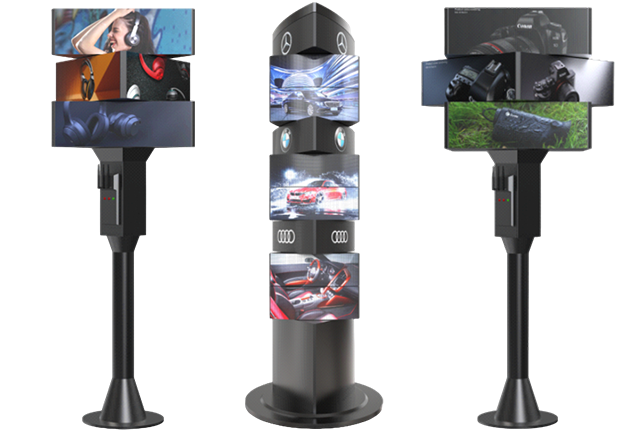

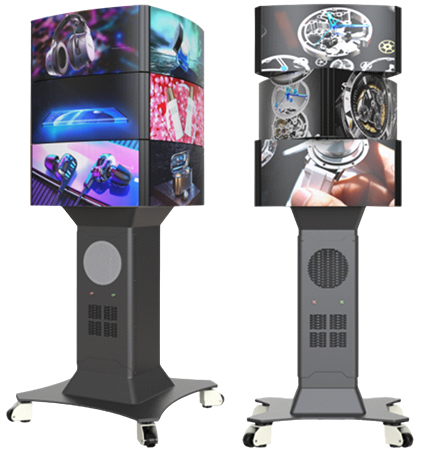

Mechanical Rotating LED Screen

A mechanical LED display that rotates sounds cool. Of course, this kind of LED display usually needs to be customized by finding a manufacturer.
  • Cambered & Plane Surface
  • Module Size(mm): 320*160/240*120/256*128/320*320
  • Various sizes can be customized
request a solution

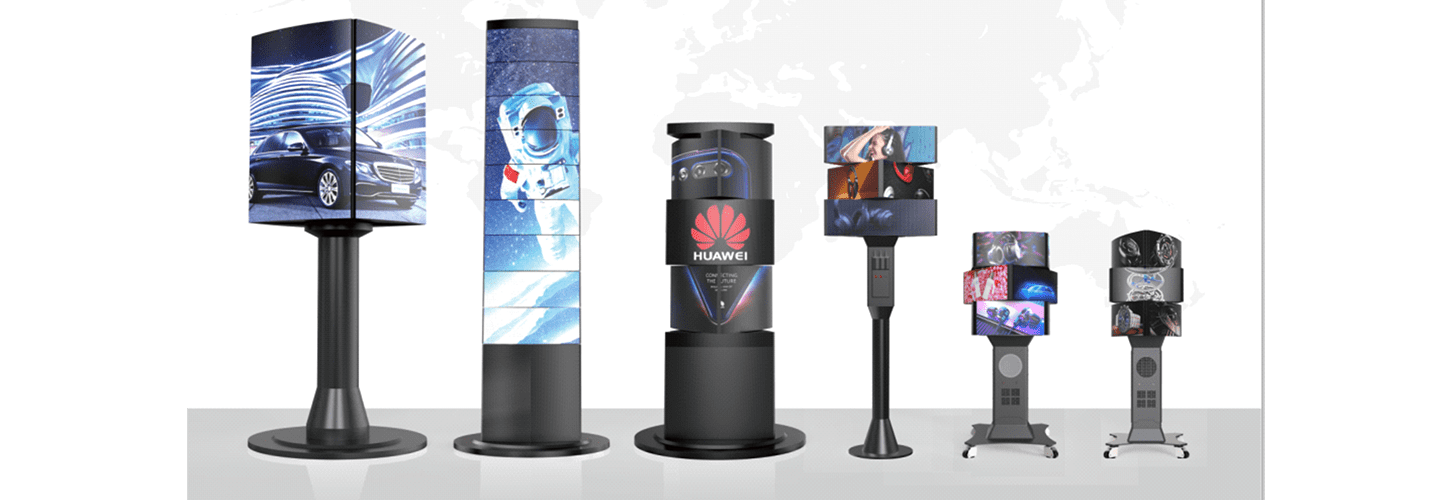

Custom LED Displays

Elevate your display solutions with eTegrity Digital Signs Mechanical Rotating LED Display Screens. eTegrity Digital Signs offers plenty of customized services, allowing you to tailor the equipment to your specific needs. Choose between standard and customized versions to fit your unique requirements. Whether it’s the appearance, height, or decoration, the flexible customization options ensure that your display stands out and makes a lasting impression.

Plane & Cambered Surfaces

Discover the versatility of Milestromg’s Mechanical Rotating LED Display Screens, available in both plane and cambered surface designs. Whether you need a flat display for a sleek, modern look or a curved surface for a more immersive experience, these screens provide the perfect solution.

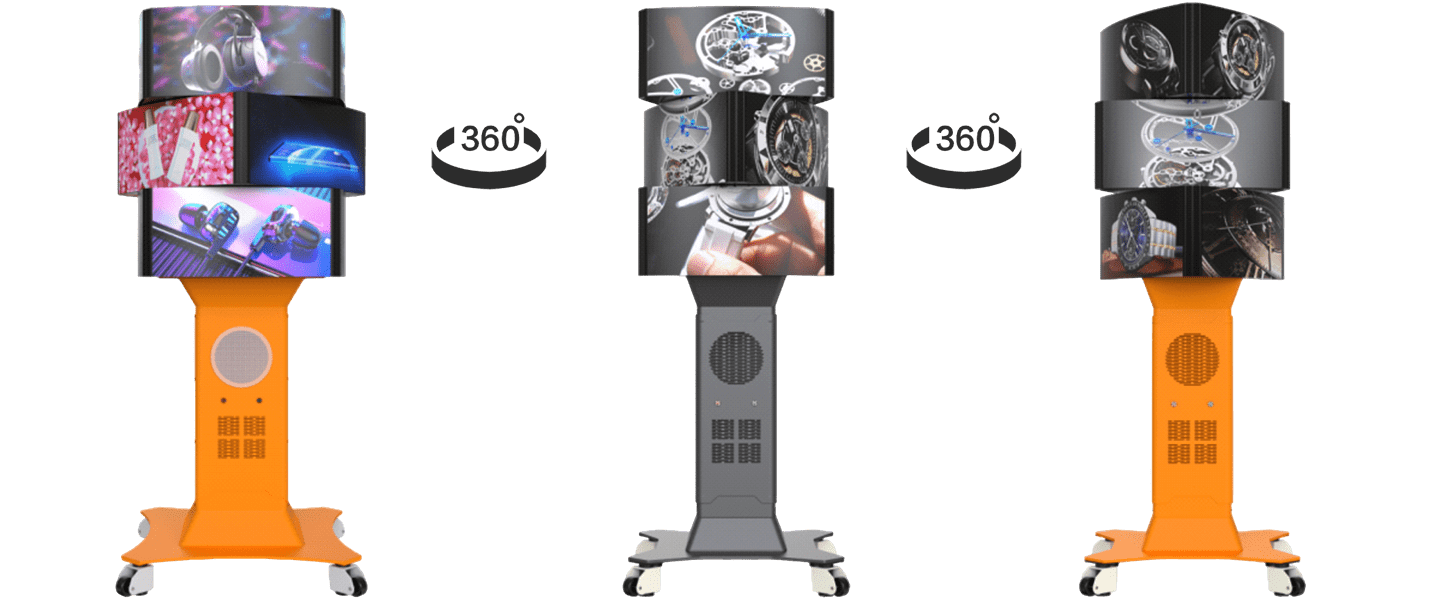

Dynamic Multi-Layer Rotation

Experience the allure of eTegrity Digital Signs Mechanical Rotating LED Display Screens with a unique multi-layer design. Featuring a flexible curved display surface and a super wide-angle view, these screens captivate audiences with their dynamic rotation. The intelligent rotation system allows for the seamless combination of various rotational patterns, creating numerous 360-degree spectacular movements.

Easy Maintenance

The Mechanical Rotating LED Display Screens offer unparalleled maintenance convenience. Thanks to their modular structure design, equipment maintenance or repairs can be performed without disassembly. Technicians can work efficiently from either the inside or outside, ensuring minimal downtime and seamless operation.

Convenient Control

Enjoy seamless control of eTegrity Digital Signs Mechanical Rotating LED Display Screens with multiple remote options. Whether using a mobile phone, computer, or dedicated controller, managing your display is effortless. Experience the ease and flexibility of adjusting your screen’s settings from anywhere, ensuring optimal performance and a smooth user experience.

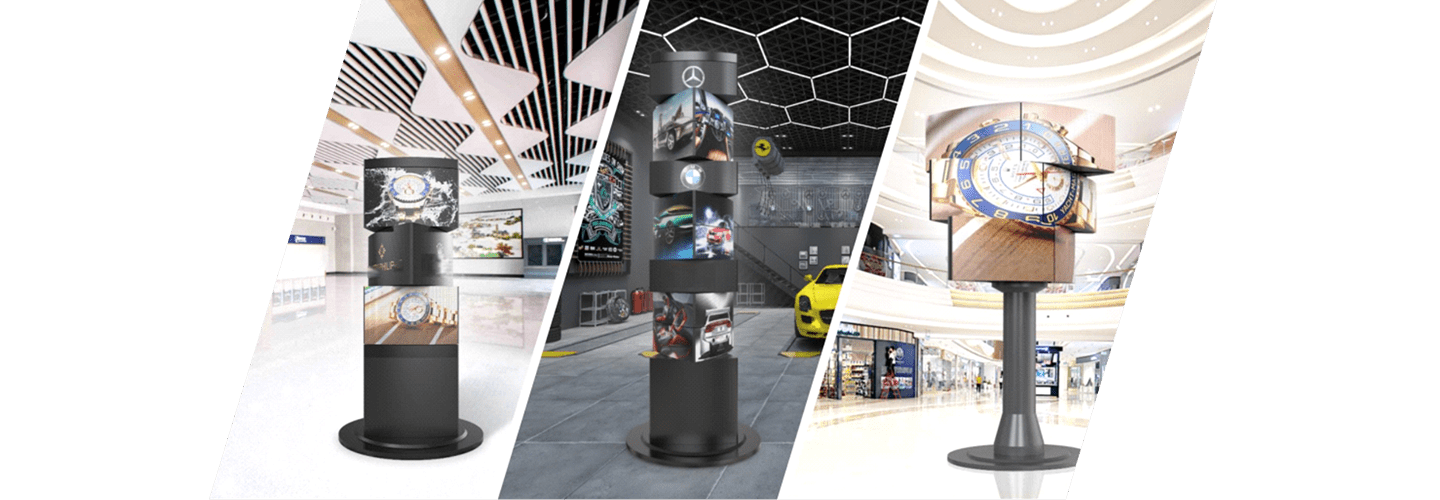

Applications

The Mechanical Rotating LED Display Screens are perfect for a wide range of applications. Ideal for high-speed rail stations, terminals, shopping malls, car dealerships, stores, science and technology museums, industrial parks, bus stations, etc.
Item Specification Remark
Model 3mm Indoor Optional
Module Size320×160mmFlexible
Equipment Layers3Layers
Dimension1000mm×1000mm×2900mm
Display AppearanceWide View Curved
Total Faces9
Each Face Size960×640 960×600
One Face + 3 Layers Size960×920 960×1800Synchronous model for big images
Total Display Size2880×1920 2880×1800
Equipment Height2900mm
Max Power Consumption5.7KWActual power consumption around 4KW
Rotating ModelOptionalDifferent rotating mode according to playing request
Rotating SpeedAdjustableSpeed adjustable
Rotating QTYClockwise & Anti Clockwise 8 models
Switch EquipmentPad, PC, Mobile phone
Play ControlOnline RemotePad, PC, Mobile phone switch on/off
Power & Data220V/380V220V or 380power, ethernet or wifi
EquipmentNo needBase included, no need add extra base
ProtectionSafety Protection
Model3mm IndoorOptional
Module Size320×160mm, 240×120mmFlexible
Equipment Layers9
Dimension1000mm×1000mm×4390mm
Display AppearanceWide View Curved
Total Faces27 Faces
Each Face Size960×320 960×360
One Face + 3 Layers Size960×2880 960×3240Synchronous model for big images
Total Display Size2880×2880 2880×3240
Equipment Height4050mm, 4390mm
Max Power Consumption11.7KWActual power consumption around 4KW
Rotating ModelOptionalDifferent rotating mode according to playing request
Rotating SpeedAdjustableSpeed adjustable
Rotating QTYClockwise & Anti Clockwise 10 models
Switch EquipmentPad, PC, Mobile phone
Play ControlOnline RemotePad, PC, Mobile phone switch on/off
Power & Data220V/380V220V or 380power, ethernet or wifi
EquipmentNo needBase included, no need add extra base
ProtectionSafety Protection
Model3mm IndoorOptional
Module Size240×120mm, 320×160mmFlexible
Layers3
Equipment SizeWidth 1200mm, Height 4499mm
Size after CombiningWidth 1200mm, Height 4499mm
Display AppearanceWide View Curved
Equipment Faces12 faces /2 faces
Single Face Size1200×720mm 1280×800mm
3 layers one face1200×2160mm 1280×2400mmSynchronous model for big images
3 layers one face after combing2400×2160mm 2560×2400mm
Total Display Area4800×2160mm 5120×2400mm
Equipment Height4499mm 4750mm
Max Power Consumption13.5KWActual power consumption around 4KW
Rotating ModelOptionalDifferent rotating mode according to playing request
Rotating SpeedAdjustableSpeed adjustable
Rotating QTYClockwise & Anti Clockwise 8 models
Switch EquipmentPad, PC, Mobile phone
Play ControlOnline RemotePad, PC, Mobile phone switch on/off
Power & Data220V/380V220V or 380power, ethernet or wifi
EquipmentNo needBase included, no need add extra base
ProtectionSafety Protection
Model 4mm Outdoor 4mm Outdoor
Module Size 320×320mm 320×320mm
Layers 3 3
Dimension 1025mm×1025mm×2990mm 1025mm×880mm×2990mm
Total Faces 4 3
Each Face per Layer Size 960×320 960×320
Each Face 3 Layers Size 960×960 960×960
Total Display Size 3840×960 2880×960
Equipment Height 2990mm 2990mm
Max Power Consumption 4.7KW 3.8KW Actual power consumption around 4KW
Rotating Model Optional Different rotating mode according to playing request
Rotating Speed Adjustable Speed adjustable
Rotating QTY Clockwise & Anti Clockwise 8 models
Switch Equipment Pad, PC, Mobile phone
Play Control Online Remote Pad, PC, Mobile phone switch on/off
Power & Data 220V/380V 220V or 380power, ethernet or wifi
Equipment No need Base included, no need add extra base
Protection Safety Protection
Model 2mm Outdoor 2mm Indoor 2mm Indoor
Module Size 240×120mm 256×128mm 240×120mm
Layers 3 3 3
Dimension 480mm×1600mm 512mm×1600mm 480mm×1600mm
Total Faces 4 3 3
Each Face per Layer Size 480×240 512×256 480×240
Each Face 3 Layers Size 480×720 512×768 480×720 Synchronous model for big images
Total Display Size 1920×720 1536×768 1440×720
Equipment Height 1600mm 1600mm 1600mm
Max Power Consumption 900W 750W 750W Actual power consumption around 4KW
Rotating Model Optional Different rotating mode according to playing request
Rotating Speed Adjustable Speed adjustable
Rotating QTY Clockwise & Anti Clockwise 8 models
Switch Equipment Pad, PC, Mobile phone
Play Control Online Remote Pad, PC, Mobile phone switch on/off
Power & Data 220V 220V or 380power, ethernet or wifi
Equipment No need Base included, no need add extra base
Protection Safety Protection
