MSC Series LED Poster Display

An advertising machine made of LED displays can combine multiple screens into one larger screen. It is widely used in shopping malls, hotels, airports, exhibition halls, and various commercial environments.

Pixel Pitch (mm) : 1.25 / 1.53 / 1.86 / 2.5
Versions : Non-Foldable / Two-Fold / Three-Fold
Standard LED Display

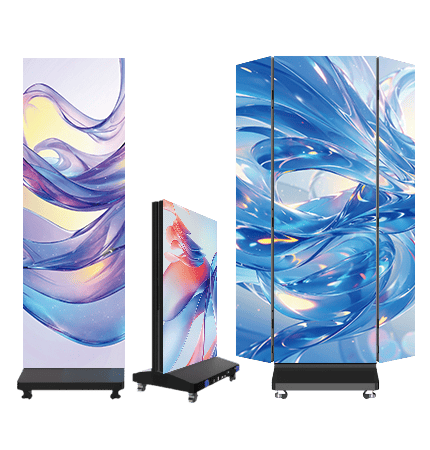

Versatile LED Poster Display

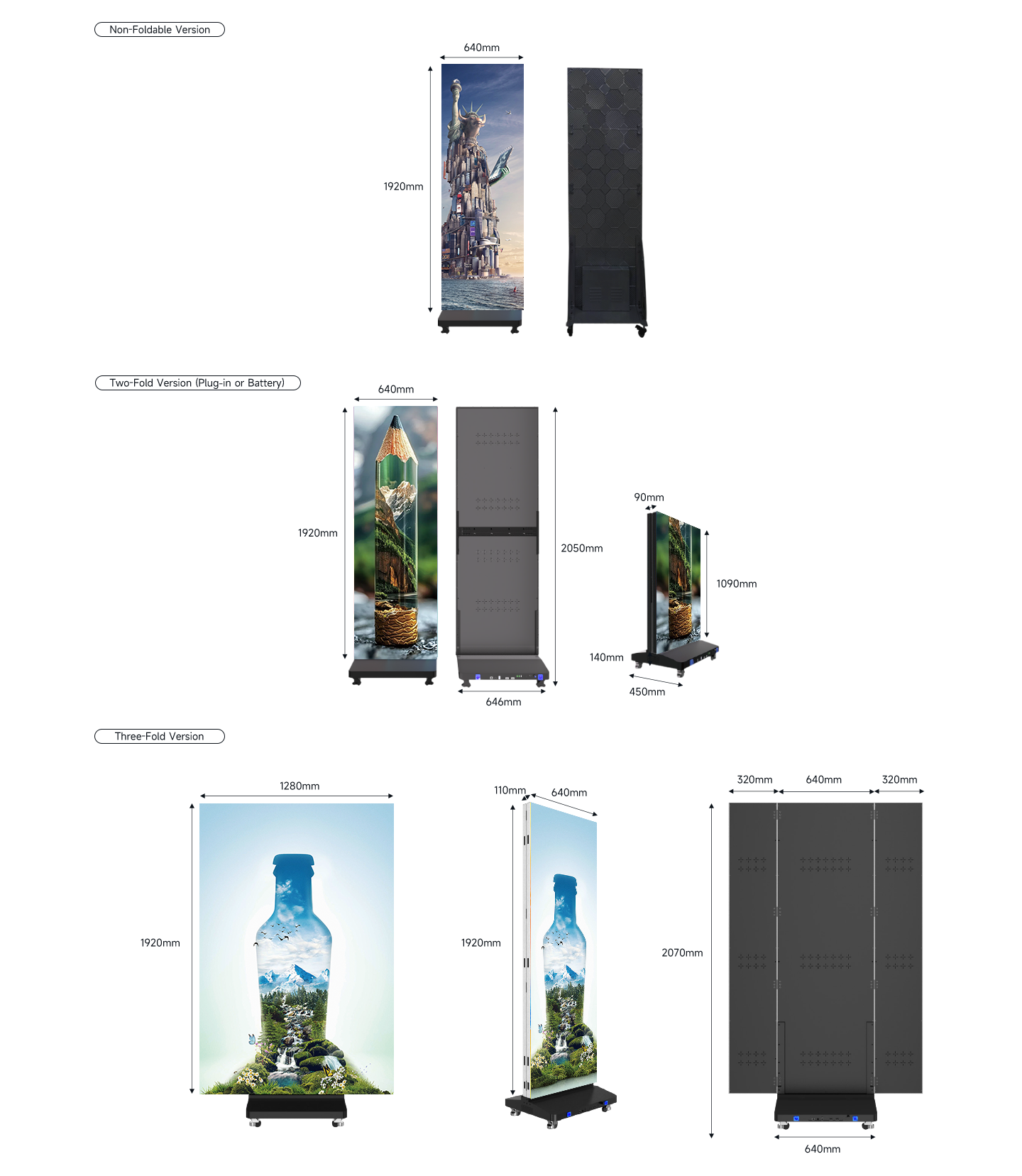

The MSC Series LED poster display is available in three models: the standard non-foldable version, the two-fold version, and the three-fold version, offering flexible choices for different display needs.

Stunning Visuals

Featuring high resolution, high brightness, excellent color reproduction, and high contrast, the MSC Series delivers crystal-clear and vibrant visuals.

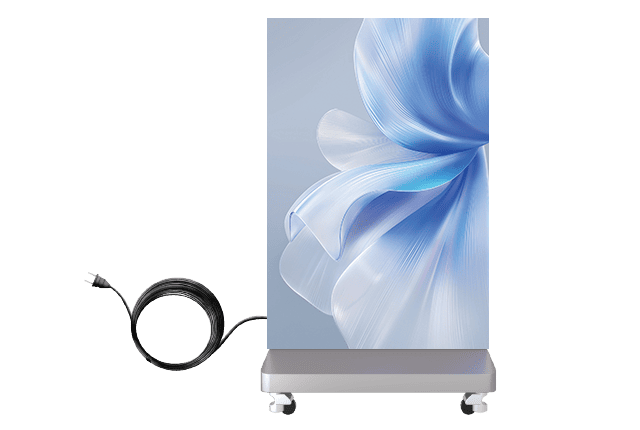

Plug and Play

No installation required — simply power on and it’s ready to use. Shipped as a fully assembled product, the MSC Series ensures a hassle-free experience without the need for professional setup.

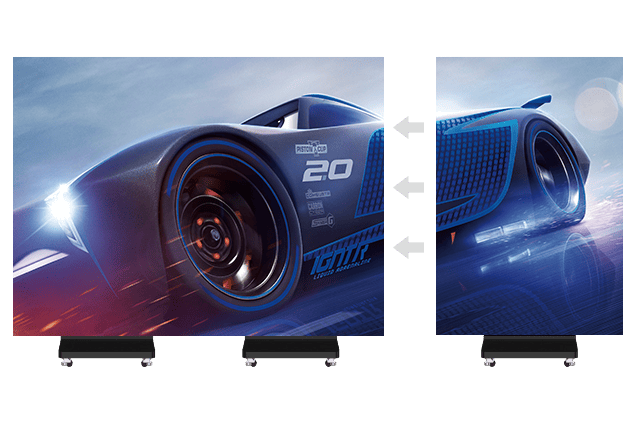

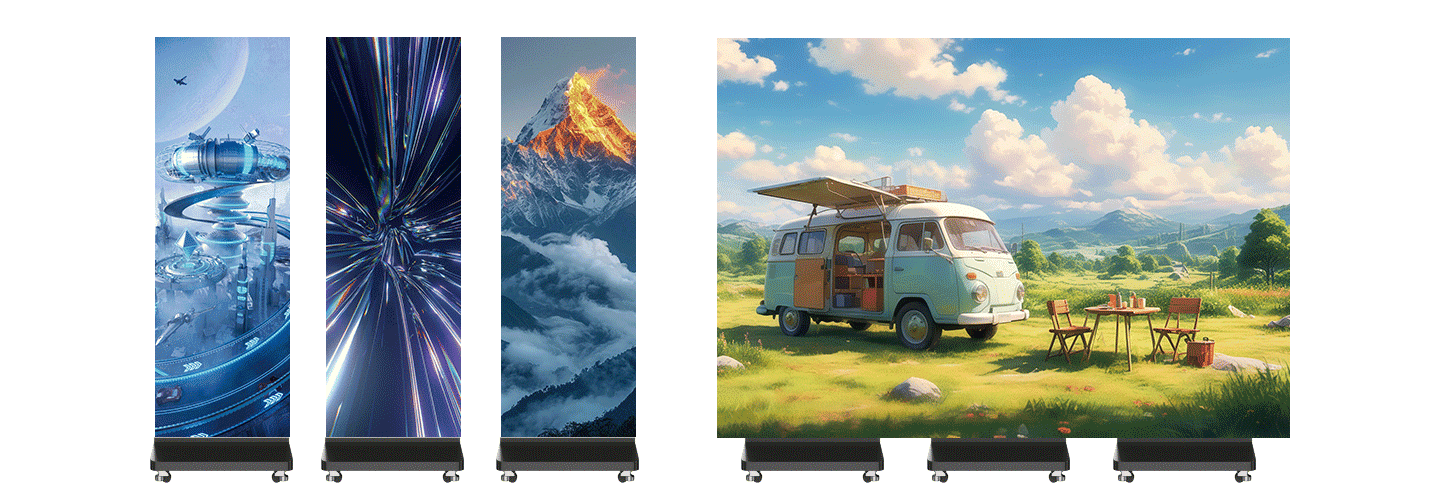

Seamless Splicing

Use it as a stand-alone display or seamlessly splice multiple units into a larger screen. This flexibility makes it suitable for a wide range of applications.

Effortless Control

With one-click release via a mobile app, users can quickly upload content from mobile devices. The user-friendly software ensures easy operation, even for non-technical users.

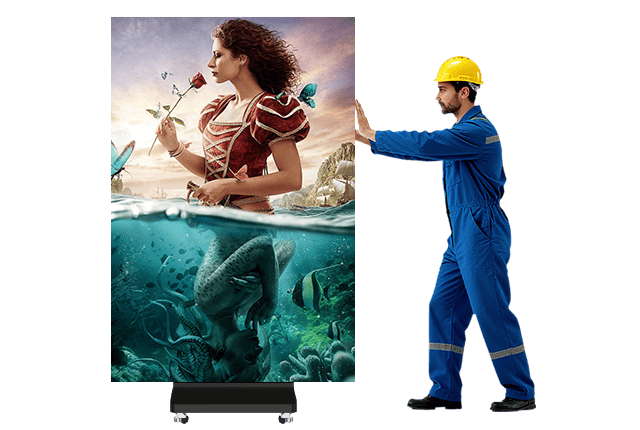

Universal Wheel Design

Equipped with four swivel wheels, the display can be easily moved and repositioned for flexible placement in different environments.

Multiple Transmission Options

tandard transmission methods include USB, WiFi, and Ethernet port. Optional HDMI and wireless 4G modules are also supported for expanded connectivity.

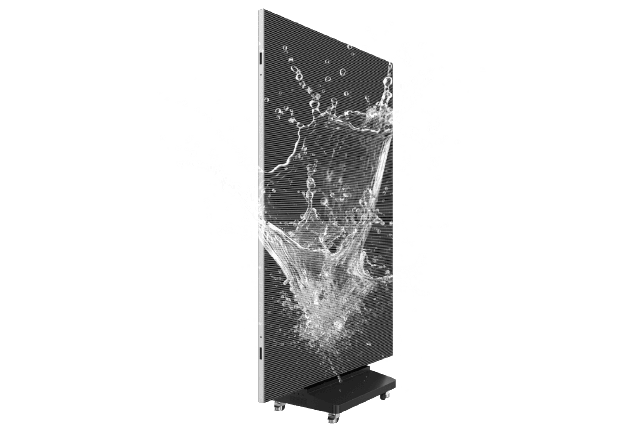

Floor-Tile-Grade GOB Technology

The non-foldable version offers optional GOB protection, while the foldable versions come with GOB by default. This technology makes the surface splash-proof, scratch-resistant, impact-resistant, and moisture-proof, ensuring long-lasting durability.

Synchronous & Asynchronous Modes

Supporting both synchronous and asynchronous display, the MSC Series can play offline content in a loop for advertising or synchronize with live broadcasts and meetings.

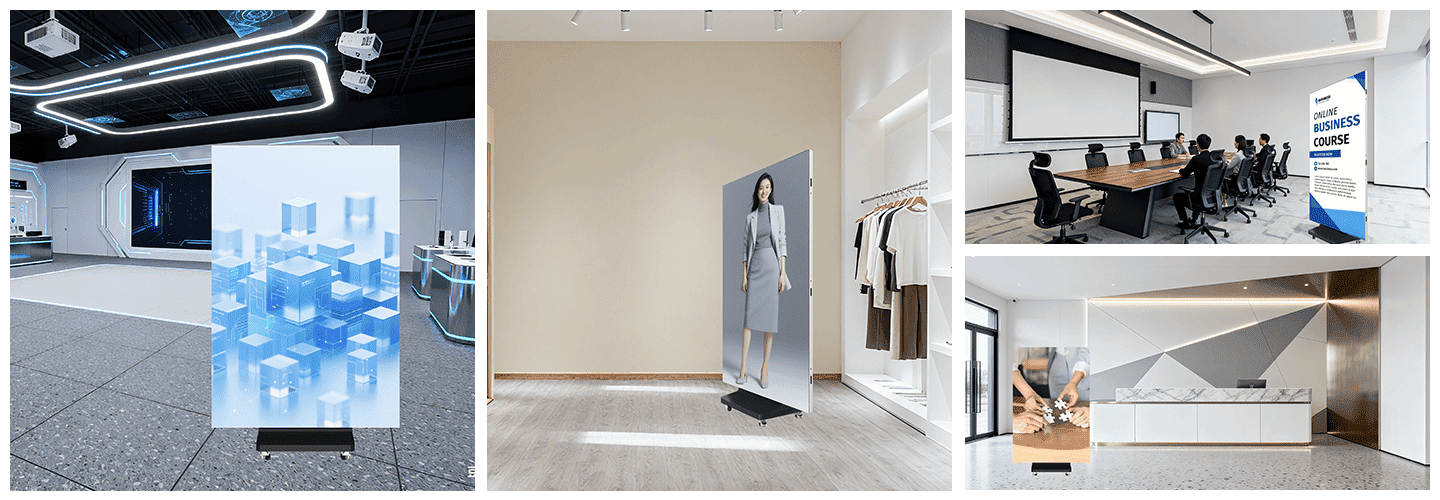

Applications

Combining aesthetic elegance with high-performance technology, the STP poster screen is ideal for boutiques, tech stores, banks, showrooms, and brand launches—making digital engagement effortless and stylish.

Model	A-186	A-25	B-186	B-25
Pixel Pitch (mm)	1.86	2.5	1.86	2.5
Module Size (mm)	320×160		320×160
LED Type	SMD1212	SMD1515	SMD1212	SMD1515
Module Resolution (W×H)	172×86	128×64	172×86	128×64
Cabinet Resolution (W×H)	1,376×516	1,024×384	1,032×516	768×384
Product Size (mm)	L1,675×W585×H1,100	L1,065×W585×H1,100
Display Size (mm)	2,560×960	1,920×960
Brightness (cd/m²)	500–600	500–600	500–600	500–550
Refresh Rate (Hz)	3,840
Protection Level	IP43
Control System	Novastar AD20
Input Voltage	110–220V
Power Consumption (W/m²)	600–700W
Flight Case Dimensions (mm)	1,930×710×1,320	1,300×710×1,320
Net Weight (kg)	160	94
Gross Weight (kg)	215	160
