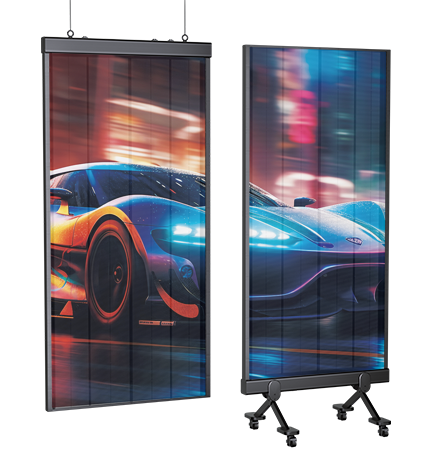

STP Series Transparent LED Poster Display
- Pixel Pitch (mm) : 2.8-5.6 / 3.9-7.8 / 3.47-3.47 / 3.9-3.9
- Standard Display Size (mm) : 1,000×2,000×54
- Transparent LED Poster Display
Sleek Size & Smart Structure

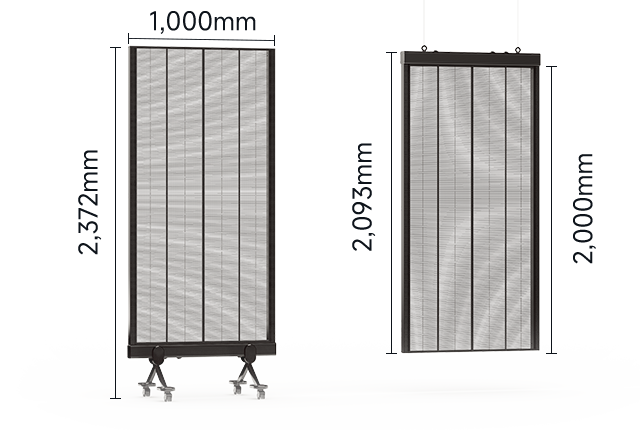

The STP Series transparent LED poster screen is available in multiple pixel pitches — 2.8-5.6mm, 3.9-7.8mm, 3.47-3.47mm, 3.9-3.9mm — allowing flexible adaptation to diverse resolution requirements. The standard display size is 1,000×2,000×54mm. It features a frame size of 1,000×2,093×80mm, with optional configurations including a frame with stand (1,000×2,297×600mm) or frame with wheels (1,000×2,372×600mm), offering flexibility for different installation preferences.

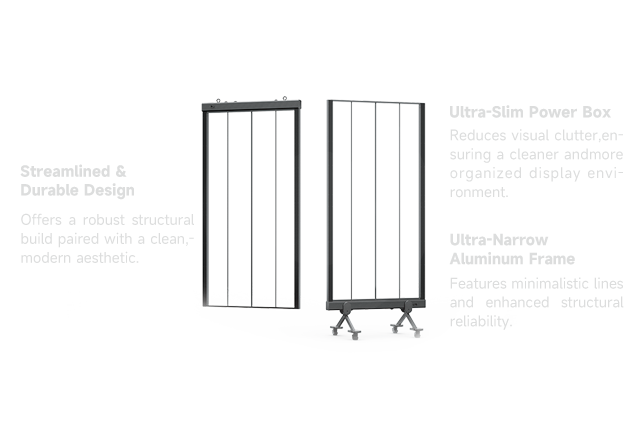

Lightweight and Structurally Resilient
Constructed from high-strength aluminum alloy, the STP Series achieves an optimal balance between structuralintegrity and lightweight portability. Its clean, industrial-grade design ensures seamless integration into high-endcommercial spaces without compromising aesthetics or durability.

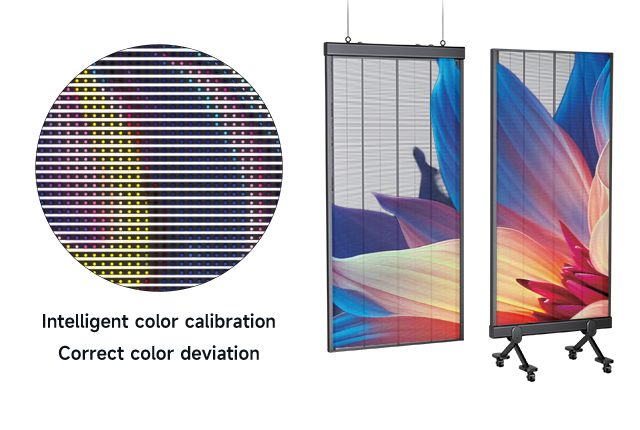

High Transparency & High Brightness
Combining high-definition resolution with superior transparency, the STP Series delivers vivid, sharp images without obstructing ambient light. The high brightness ensures clear visibility even in well-lit indoor environments, preserving openness while enhancing visual impact.

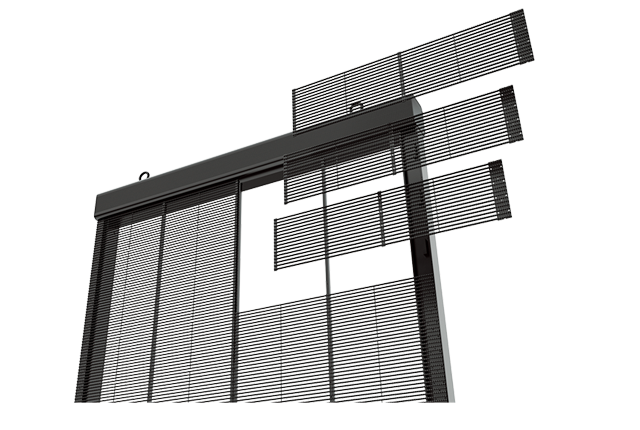

Front Maintenance & Efficient Installation
Designed for ease of service, the STP Series supports full front maintenance. Key components such as LED modules, power supplies, and IC boards can be accessed and replaced from the front, reducing maintenance time. The quick-lock cabinet structure further simplifies installation, improving operational efficiency and lowering long-term service costs.

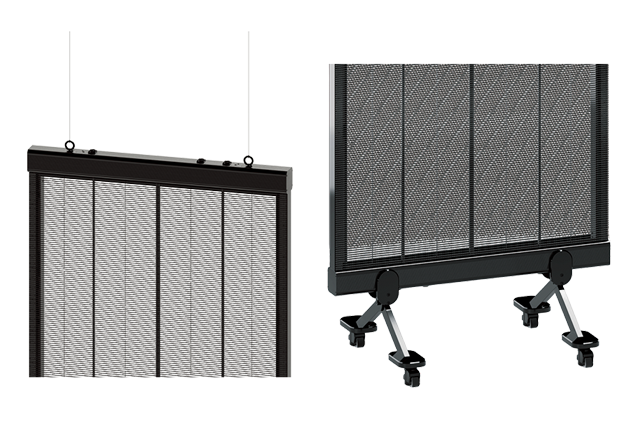

Flexible Suspension and Freestanding Placement
Installation flexibility is enhanced through both suspension capability and floor-standing configurations. The display can besuspended using hanging brackets or placed directly on the floor using an integrated stand or wheel base, allowing effortless repositioning and reconfiguration.
Plug-and-Play & Wireless Control
The STP Series features a built-in sending system for instant setup — just connect the power to activate. Through a dedicated mobile app and Wi-Fi connection, users can easily update content, adjust settings, and manage playback anytime, anywhere.

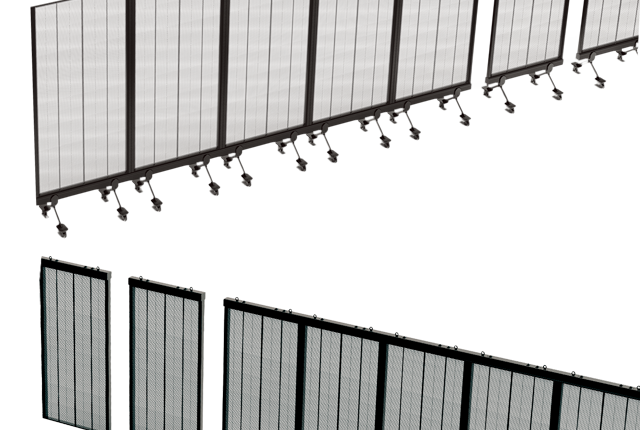

Modular and Scalable Display Configuration
The modular design enables multiple units to be seamlessly joined into a larger composite screen. This scalability allows for customized screen sizes and flexible layout designs, catering to various spatial and visual requirements in commercial and event settings.
Application Scenarios
Combining aesthetic elegance with high-performance technology, the STP poster screen is ideal for boutiques, tech stores, banks, showrooms, and brand launches — making digital engagement effortless and stylish.
| Items | STP2.8-5.6 | STP3.9-7.8 | STP3.47-3.47 | STP3.9-3.9 |
|---|---|---|---|---|
| Pixel Pitch | 2.8-5.6mm | 3.9-7.8mm | 3.47-3.47mm | 3.9-3.9mm |
| Module Size (W×H) | 500×125mm | 500×125mm | 500×62.5mm | 500×62.5mm |
| Module Resolution (W×H) | 176×22 | 128×16 | 144×24 | 128×16 |
| Display Size (W×H×D) | 1,000×2,000×54mm | |||
| Frame Size (W×H×D) | 1,000×2,093×80mm | |||
| Frame Size with Stand (W×H×D) | 1,000×2,297×600mm | |||
| Frame Size with Wheel (W×H×D) | 1,000×2,372×600mm | |||
| Module Arrangement (W×H) | 2×16 | 2×16 | 2×32 | 2×32 |
| Pixel Density (pixels/m²) | 61,952 | 32,768 | 82,944 | 65,536 |
| Transparency Rate | 60% | 75% | 45% | 50% |
| Product Weight (kg/m²) | 20kg (26.5kg with stand; 29.5kg with wheels) | |||
| Scan Mode | 1/11 | 1/8 | 1/16 | 1/16 |
| Refresh Rate | 3,840 Hz | |||
| Cabinet Material | Aluminum frame | |||
| Maintenance | Front | |||
| Viewing Angle | 140°/140° | |||
| Brightness | 4500 nits | |||
| Grayscale | 16 bit | |||
| Signal Input | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||
| Maximum Power (W/m²) | 800 | |||
| Average Power (W/m²) | 240 | |||
| Operating Environment | -20 ℃ ~ 60 ℃, 10% ~ 90% RH | |||
