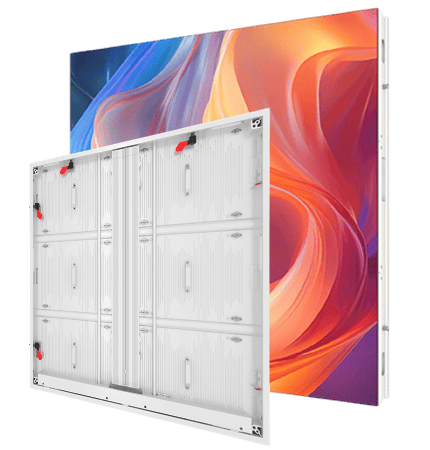

SFC Series

The LED display using common cathode technology reduces power consumption by 30% to 70% compared with the traditional LED display, and the upgraded aluminum cabinet is lighter than the original iron cabinet.
  • Pixel pitch(mm): 4.44/5.71/6.66/8/10
  • Module size(mm): 480*320
  • Cabinet size(mm): 960*960
request a solution

Elegant Appearance

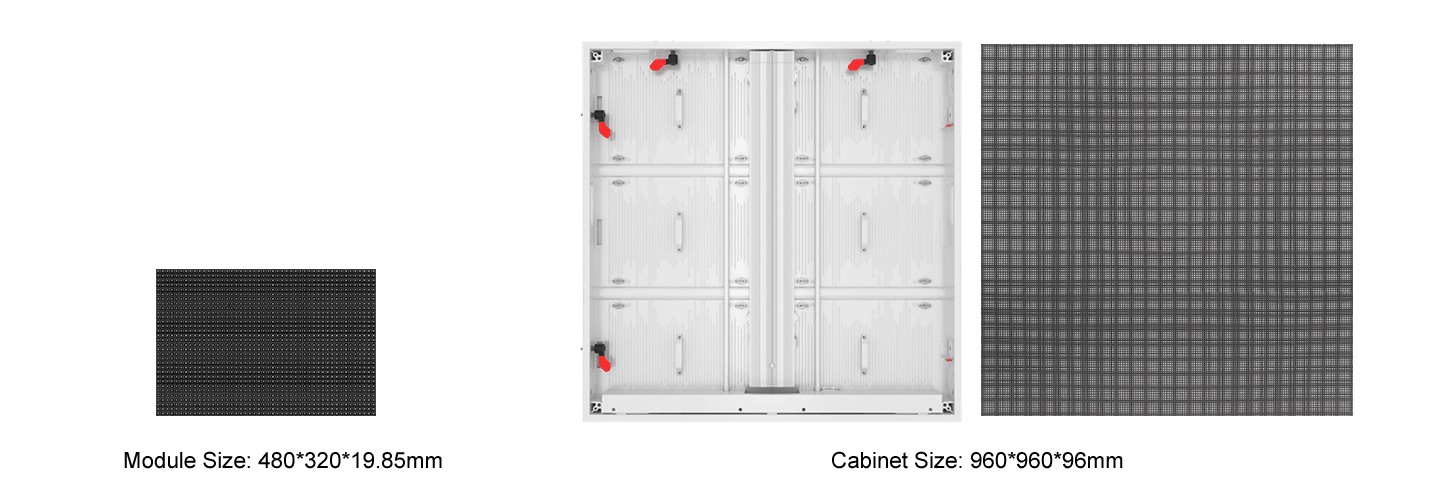

This outdoor LED display features a sleek common-cathode module size of 480*320*19.85mm and an aluminum cabinet measuring 960*960*96mm. Its hard-wired and completely wireless internal design ensures a clean, refined look that blends visual elegance with dependable performance.

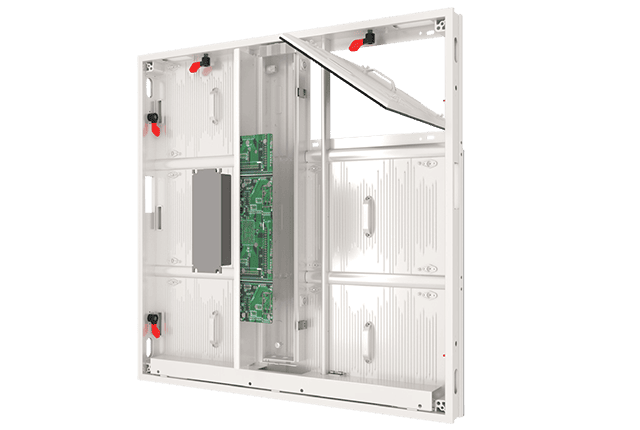

Front and Rear Maintenance

This LED display supports both front and rear maintenance, offering greater flexibility for various installation environments. With its user-friendly dual-access design, maintenance becomes faster and more efficient. Whether it’s installation or servicing, it truly saves time, effort and hassle, making your workflow smoother and more reliable.

Efficient Heat Dissipation and Energy-saving

The outdoor LED displays utilize common cathode technology, ensuring exceptional heat dissipation. The innovative design evenly releases heat from each working IC and LED, resulting in quick cooling, stable and smooth imagery, and an extended lifespan for the display.

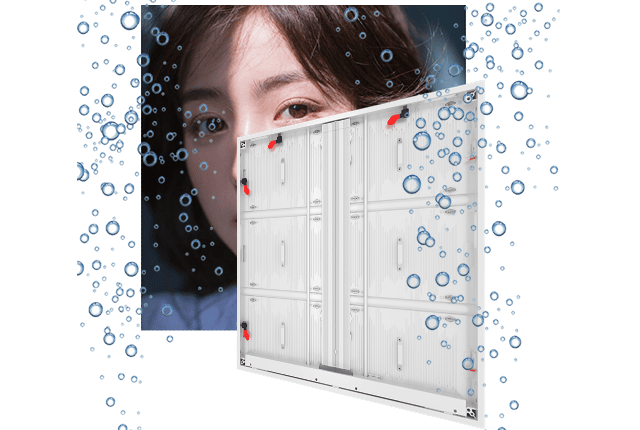

Water and Dust Resistance

Engineered for outdoor durability, this LED display features a waterproof and dustproof design with a protection rating of IP65 on both the front and rear. It effectively resists wind, rain, and dust pollution, ensuring stable performance in a wide range of outdoor environments. Whether in challenging weather conditions or dusty surroundings, it delivers long-lasting reliability.

True Colors for Realistic Visuals

eTegrity Digital Signs outdoor LED displays bring visuals to life with high resolution, over 3840Hz refresh rate, and exceptional contrast. With 14-bit grayscale and RGB 3-in-1 LED lamps, every detail is rendered with vivid clarity and color consistency. The screen delivers smooth, flicker-free performance with no motion blur, ensuring stable brightness and sharp, lifelike images that are easy on the eyes.

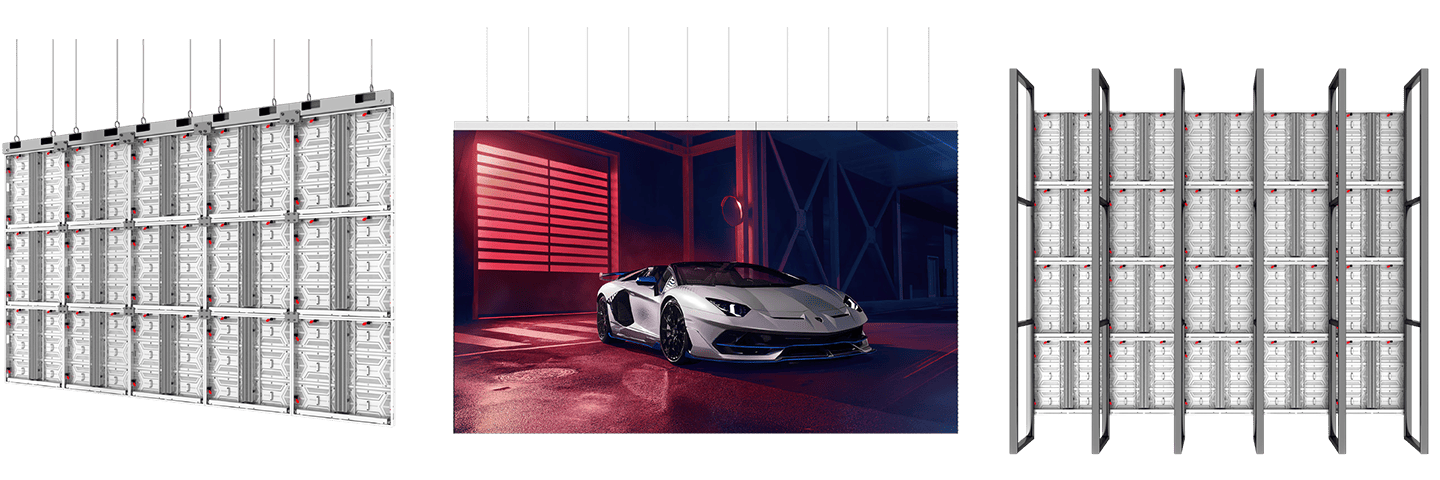

Flexible and Quick Installation

This LED display offers flexible installation options, making it easy to adapt to various environments. With seamless splicing, it ensures a flawless, continuous display. Whether for a permanent installation or other setups, the process is quick and hassle-free, providing both efficiency and a polished visual result.

Applications

This outdoor LED display is perfect for a wide range of applications, from commercial plazas and stadiums to city landmarks and exhibition halls. These versatile screens provide dynamic and eye-catching visuals, making them ideal for advertising, public information displays, and much more.

Item P4.44 P5.71 P6.66 P8 P10
Pixel Pitch 4.44mm 5.7mm 6.66mm 8mm 10mm
Module Size 480*320mm 480*320mm 480*320mm 480*320mm 480*320mm
Cabinet Size 960*960*96mm 960*960*96mm 960*960*96mm 960*960*96mm 960*960*96mm
Cabinet Weight ≤26.5kg ≤26.5kg ≤26.5kg ≤26.5kg ≤26.5kg
Waterproof Rating (Front/Rear) IP65 IP65 IP65 IP65 IP65
Brightness >5000CD/m² >6000CD/m² >6000CD/m² >6000CD/m² >6500CD/m²
Refresh Rate ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ
Viewing Angle (H/V) 140°/140° 140°/140° 140°/140° 140°/140° 140°/140°
Gray Scale 14bit 14bit 14bit 14bit 14bit
Maximum Power 650W/m² 650W/m² 650W/m² 650W/m² 650W/m²
Average Power 220W/m² 220W/m² 220W/m² 220W/m² 220W/m²
