STB Series

The STB series in Transparent displays is an innovative transparent display with an extremely narrow bezel design. This series of LED display products is a good solution in the stage, commercial exhibition, glass walkway these places.

Pixel pitch(mm): 1.9/2.8/3.9/5.2/7.8/10.4/15.6/25/31.25
Module size(mm): 500*125
Cabinet size(mm): 500*500/1000*500

360° Omnidirectional View

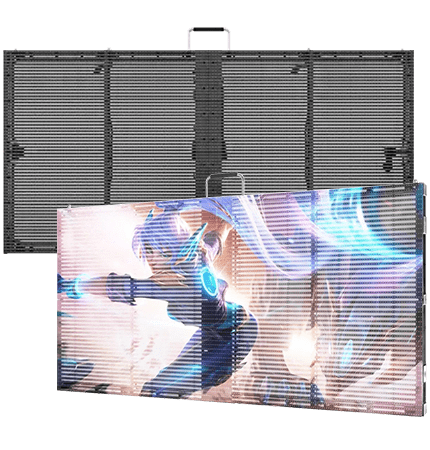

This LED transparent screen, featuring a hollow strip design, is incredibly flexible and approximately three times lighter than traditional non-transparent LED display. With cabinet sizes of 500*500*90mm and 1000*500*90mm, these screens offer a sleek and lightweight solution for various applications.

High-Quality Lamps

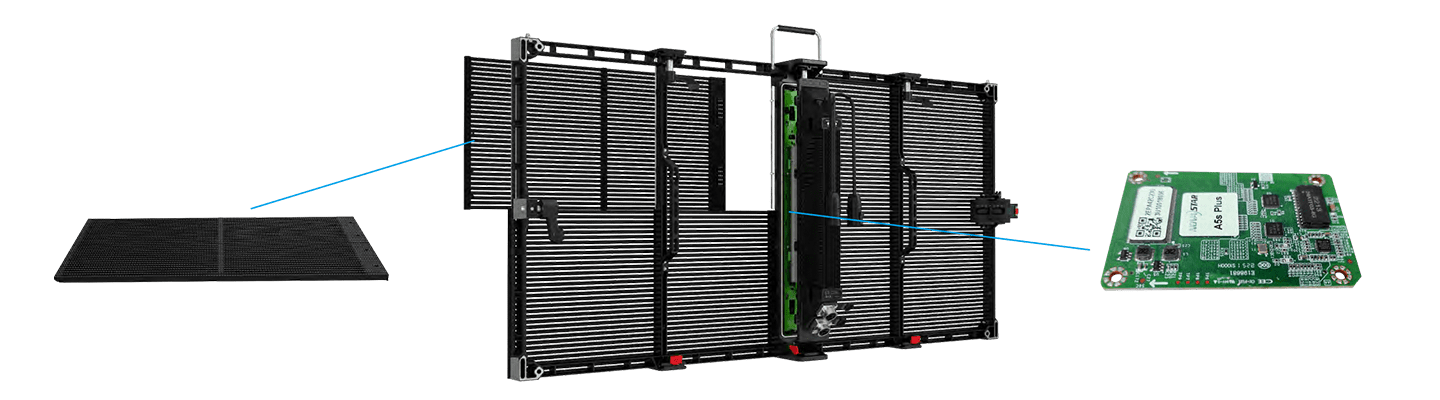

Designed for both indoor and outdoor use, the LED displays feature a high-protection frame with front and rear maintenance capabilities. The modular design allows for quick and easy replacement of screen modules, while the power box can be swiftly locked and unlocked for hassle-free receiving card replacement.

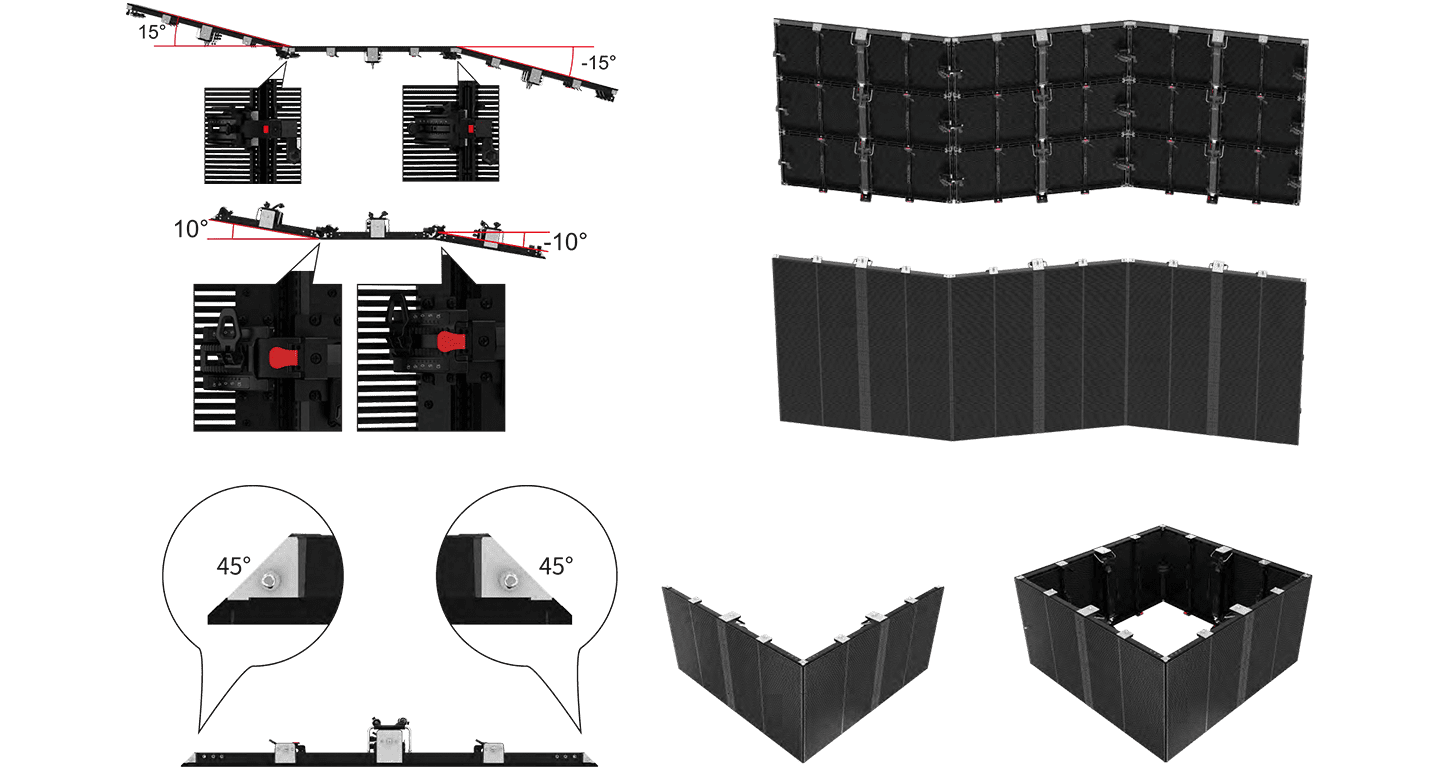

Seamless Splicing

The cabinets can achieve curved shapes with ±10°/±15° arc locks, while the 45° cut-angle cabinets support 90° splicing for square column screens. This innovative design enables seamless integration and more customized applications, providing greater versatility and creativity in your display configurations.

Superior Viewing Experience

Exceptional Performance

The LED displays offer high brightness and high transparency, ensuring clear visibility even in bright environments. With an IP65 rating, they are protected against dust and water, making them suitable for various settings. Additionally, the energy-saving technology ensures efficient operation without compromising on quality.

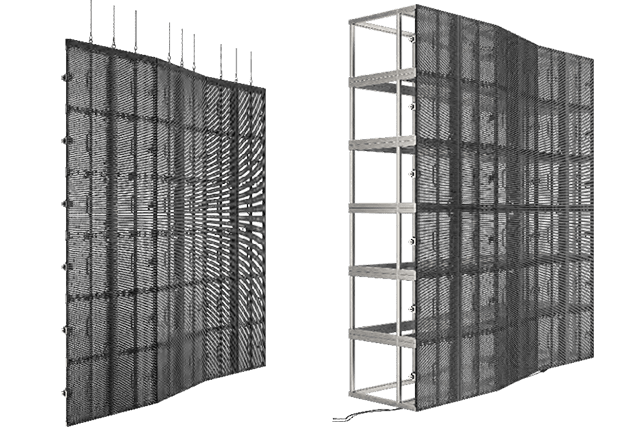

Installation Types

The LED displays support both hanging and stacking installations, providing versatile options to suit various spaces and requirements. Whether you need to suspend your display from above or stack units for a larger screen, this design ensures a seamless and secure setup.

Applications

These LED displays are perfect for a variety of applications including commercial displays, advertising in retail environments, enhancing architectural designs, creating captivating stage backgrounds, and leaving a lasting impression at exhibitions.

Product Model	STB 1	STB 2	STB 3	STB 5	STB 8	STB 10	STB 15	STB 25	STB 31
Pixel Pitch (mm)	1.9*3.9	2.8*5.6	3.9*7.8	5.2*10.4	7.8*7.8	10.4*10.4	15.6*15.6	25*25	31.25*31.25
Pixel Density (dots/m²)	129,024	61,952	32,768	18,432	16,384	9,216	4,096	1,600	1,024
Module Resolution (dots)	252*16	176*22	128*16	96*12	64*16	48*12	32*8	20*5	16*4
Cabinet Resolution (dots)	504*128	352*88	256*64	192*48	128*64	96*48	64*32	40*40	32*32
Transparency	42%	45%	65%	75%	65%	75%	85%	90%	92%
Brightness (nits)	800~3,000	800~3,500	800~5,500	800~5,500	800~5,500	800~5,500	800~5,500	800~5,500	800~5,500
Power Requirements	220V ± 10%; AC 50/60Hz
Power Consumption	Max: 800W/m²; Avg: 260W/m²
Refresh Rate	≥1920 Hz
Operating Temperature	-10°C~45°C
Weight	7.5kg/m²
Cabinet Size	1000*500mm
